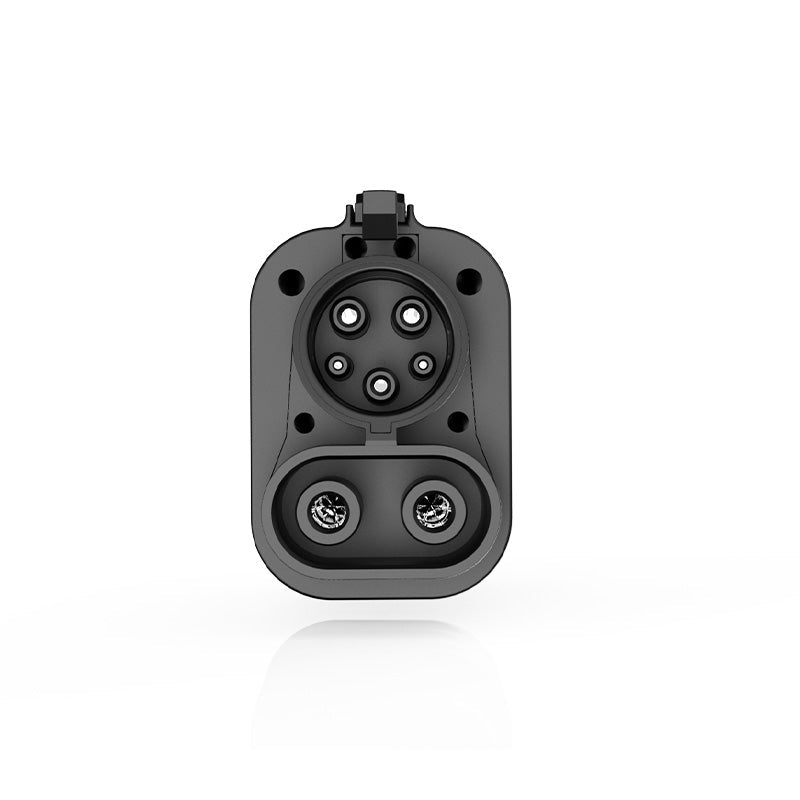

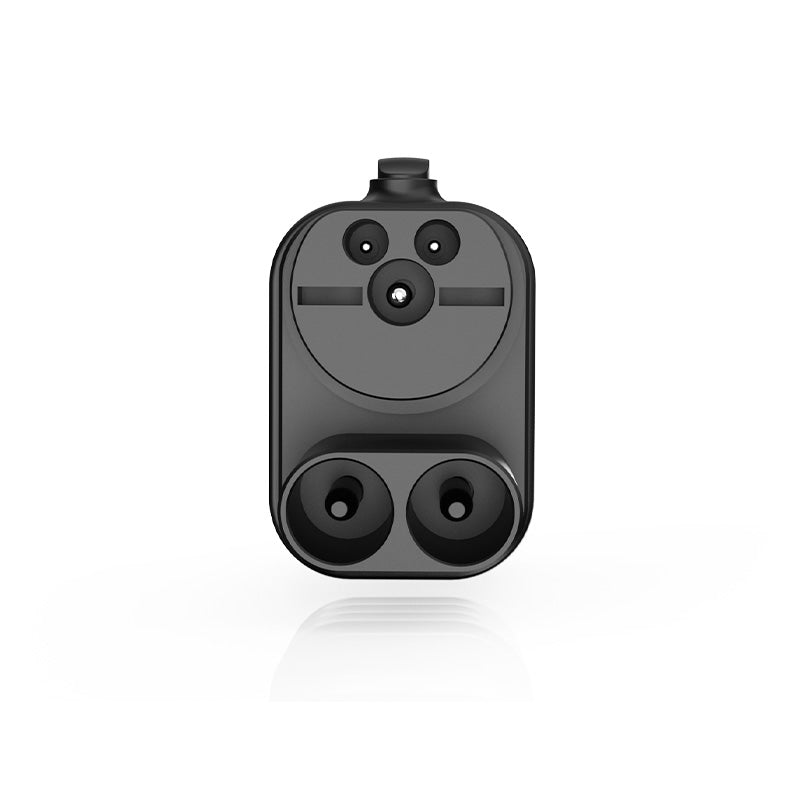

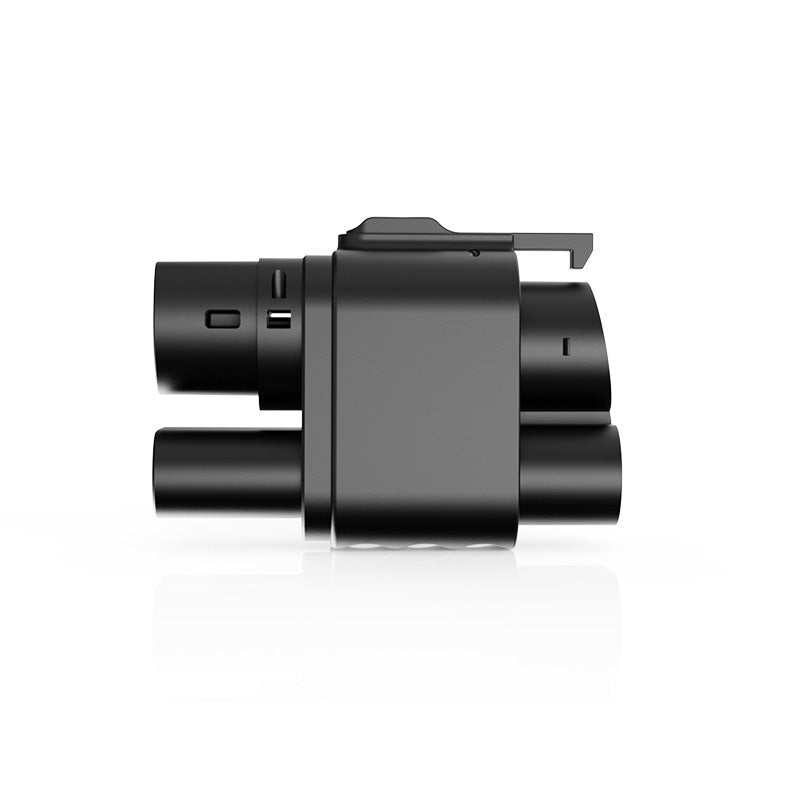

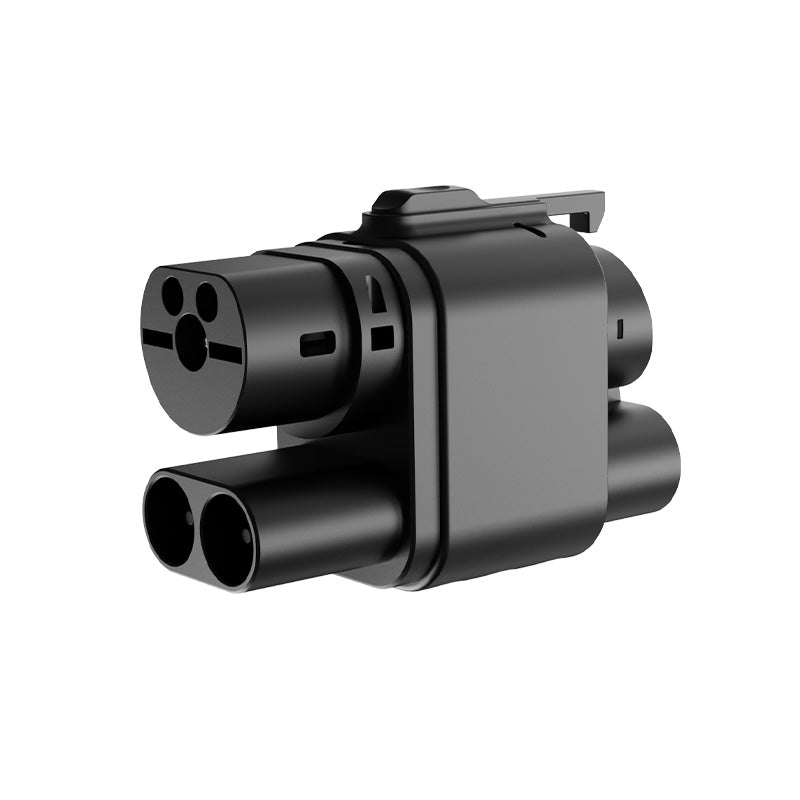

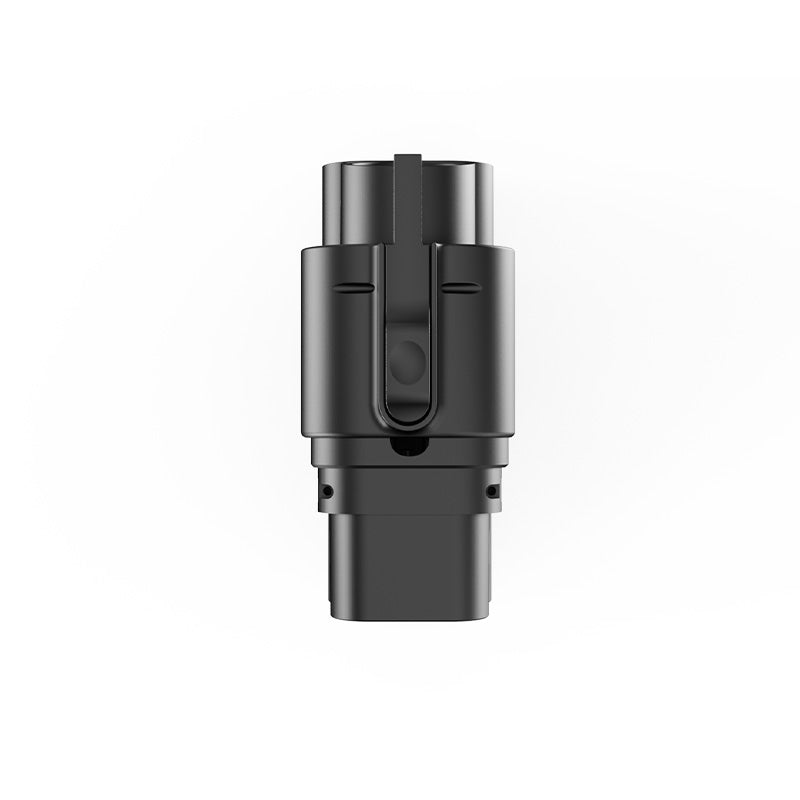

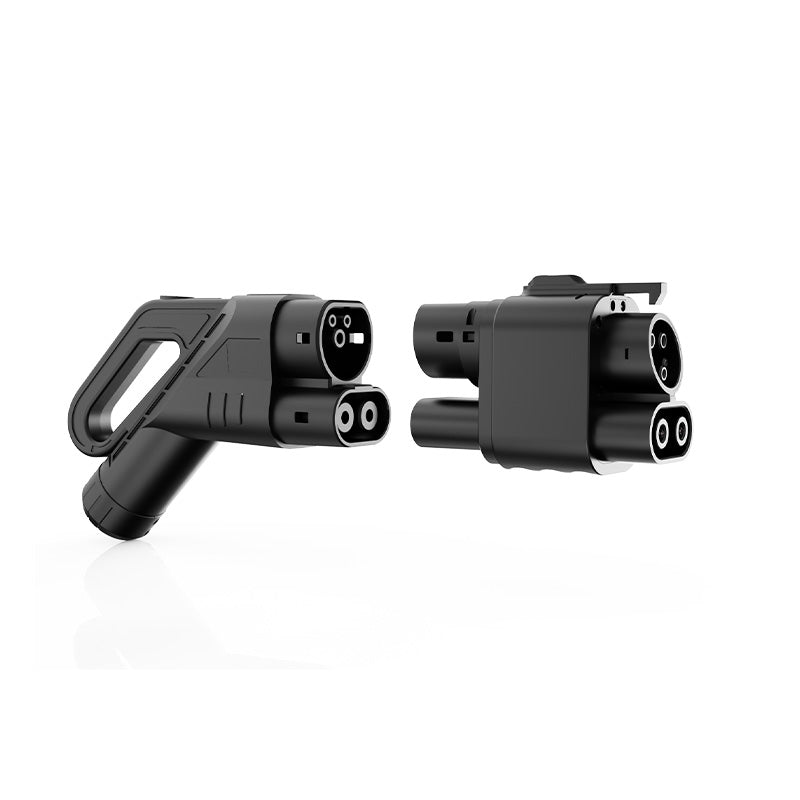

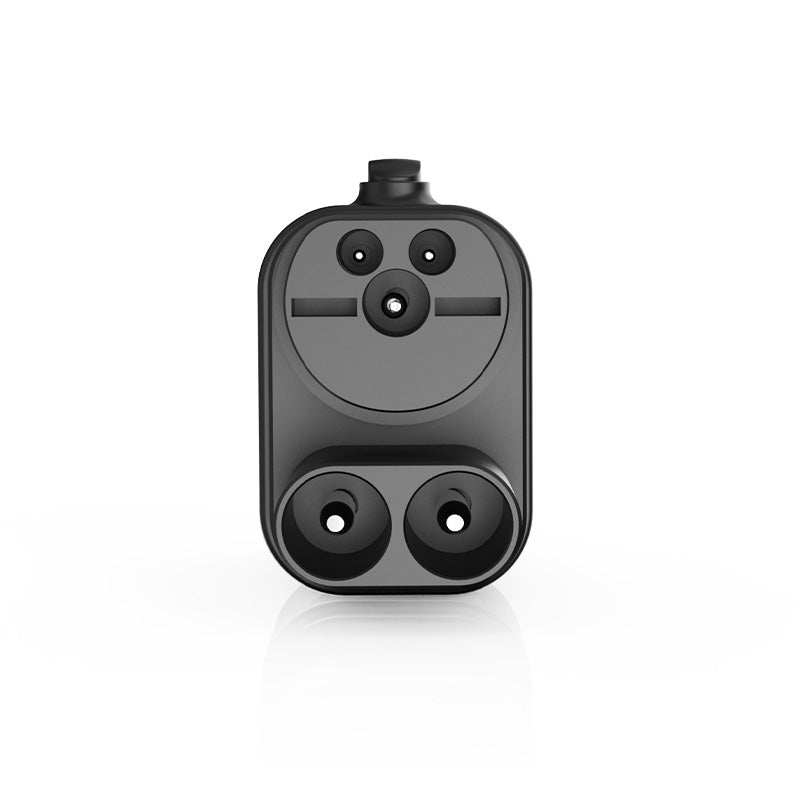

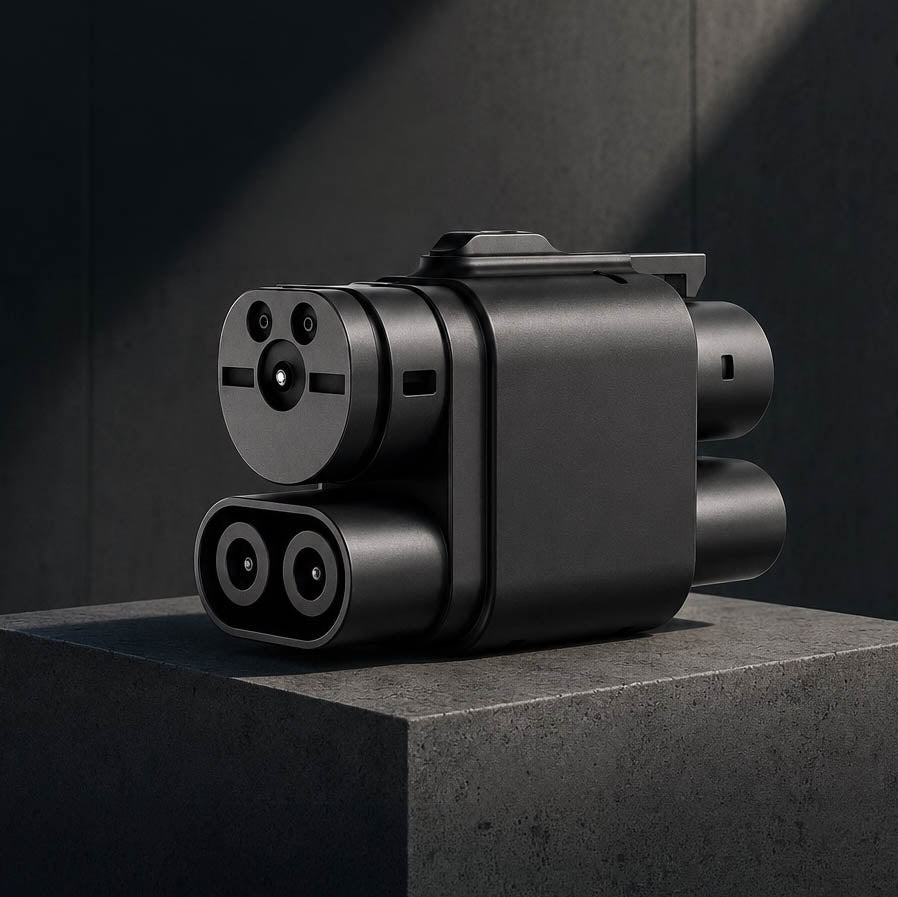

CCS2 to CCS1 DC Fast-Charge Adapter (with Lock)
DC fast-charge a CCS1 vehicle from a CCS2 rapid charger. CCS1 is the North American version of the Combined Charging System, so US-spec EVs imported into the UAE or Europe arrive with a plug that doesn't match the local CCS2 rapid chargers. This adapter connects the two, delivering up to 250A at 1000V so your imported vehicle can use the regional fast-charging network at full pace. An integrated locking mechanism holds the connection securely through a high-power session, and the rugged IP54-rated housing handles dust, splashing water, and a wide -30°C to +50°C operating range.
Works with: CCS1 vehicles charging from CCS2 DC rapid stations. Ideal for imported US-market EVs running on UAE or European CCS2 infrastructure.
IMPORTANT NOTICE: Always confirm your vehicle’s charging connector, AC/DC charging specifications, supported voltage, current, and maximum charging power, as these may vary by model, model year, and market. Charging compatibility and performance depend on the vehicle and charging source. For AC charging: also confirm your vehicle’s On-Board Charger (OBC) capability.
Technical Specifications
CCS2 to CCS1 DC Fast-Charge Adapter (with Lock)
Every detail you need to confirm the right fit, from connector standards and power ratings to protection and operating range.
DC
For CCS1 vehicles (North American combo, common on imported US-spec EVs) DC fast-charging from CCS2 rapid chargers.
250A DC max
1000V DC max
IP54
-30°C to +50°C
0.73 kg
149.85 × 68.25 × 103.2 mm
CE / IEC 62196-3
1 year
Which adapter does your EV need?
Find your vehicle's charging standard to see the adapters you need for AC and DC charging.
Type 2 to GB/T AC · CCS2 to GB/T DC
Type 2 to NACS AC · CCS2 to NACS DC
CCS2 to NACS Cybertruck DC
CCS2 to CCS1 DC
