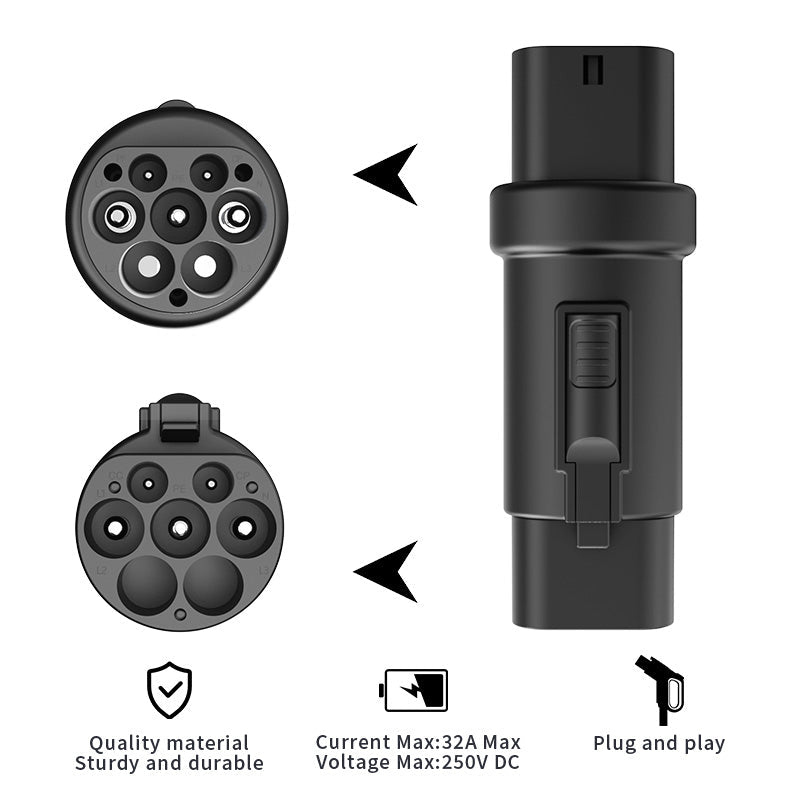

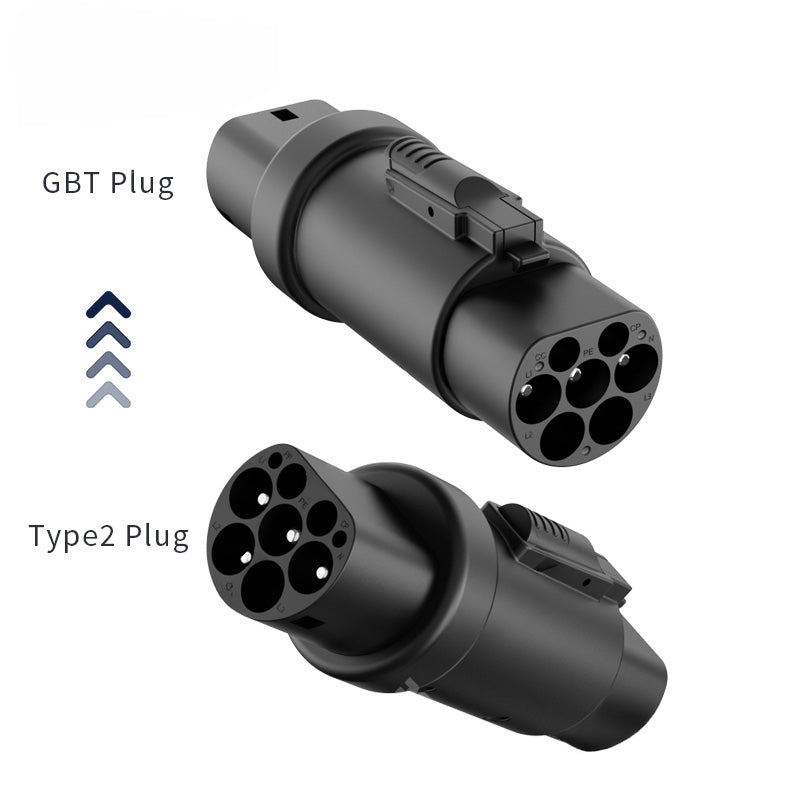

Type 2 to GB/T AC Adapter (3-Phase)
Charge a GB/T-standard EV from a Type 2 AC charging point. Designed to connect compatible GB/T vehicles with Type 2 AC charging infrastructure, the adapter supports 1-phase and 3-phase AC charging, with a rated voltage of 380V AC and maximum current of 32A , 22KW
Rated IP54 after coupling and designed for a working temperature range of −30°C to +50°C. At just 0.42kg, it is compact and convenient to carry in the vehicle.
Works with: GB/T-standard vehicles charging from compatible Type 2 AC charger
IMPORTANT NOTICE: Always confirm your vehicle’s charging connector, AC/DC charging specifications, supported voltage, current, and maximum charging power, as these may vary by model, model year, and market. Charging compatibility and performance depend on the vehicle and charging source. For AC charging: also confirm your vehicle’s On-Board Charger (OBC) capability.
Technical Specifications
Type 2 to GB/T AC Adapter (3-Phase)
Every detail you need to confirm the right fit, from connector standards and power ratings to protection and operating range.
AC
For GB/T-standard EVs (common on imported Chinese-market vehicles) charging from Type 2 AC stations across the UAE and Europe.
32A max
380V AC (3-phase)
IP54
-30°C to +50°C
0.43 kg

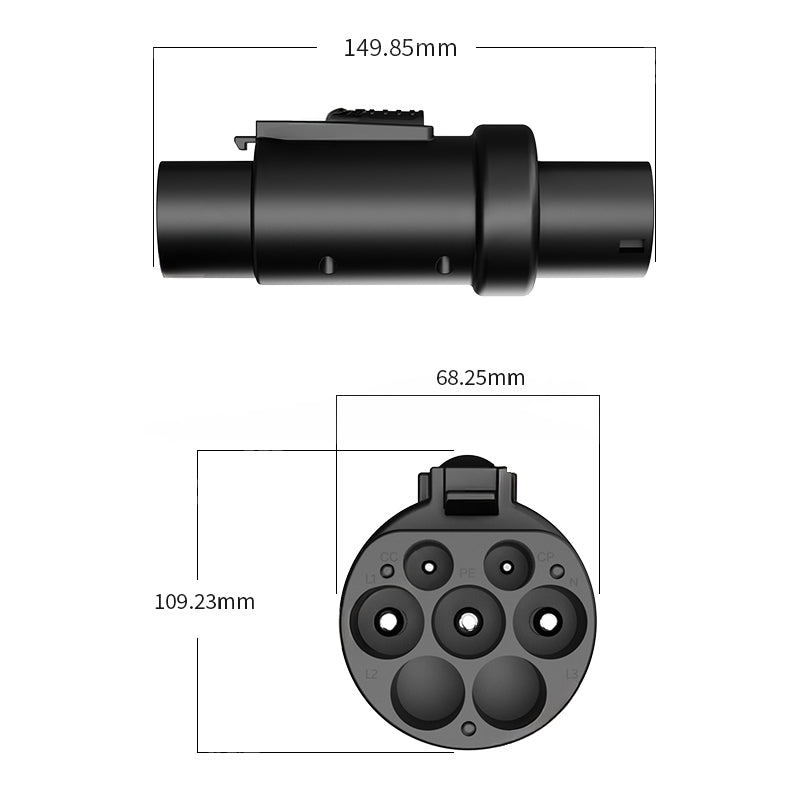

178 × 64.69 × 64.69 mm
CE / IEC 62196
22kW
1 year
