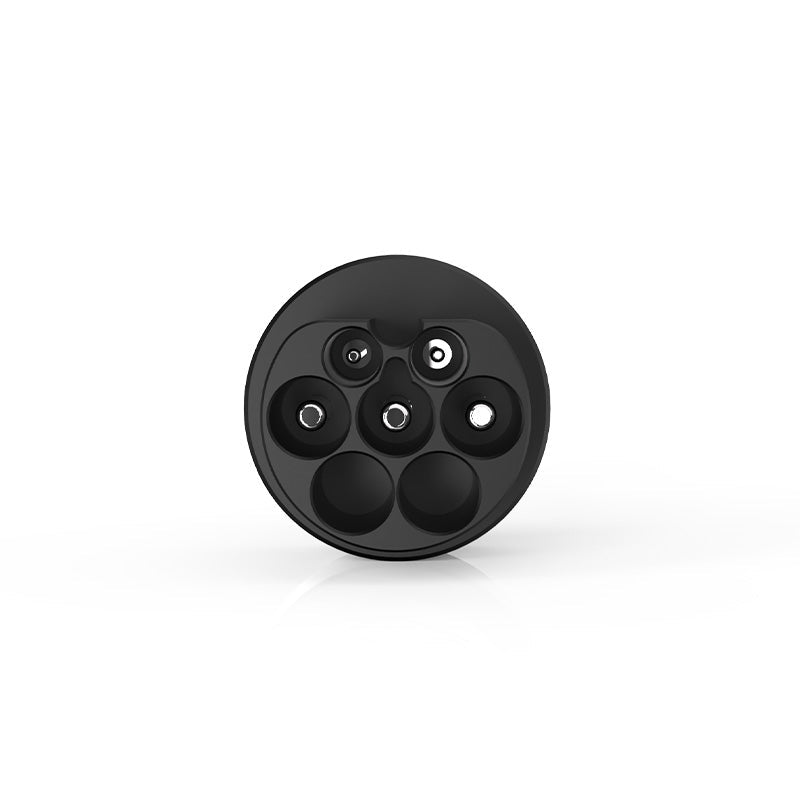

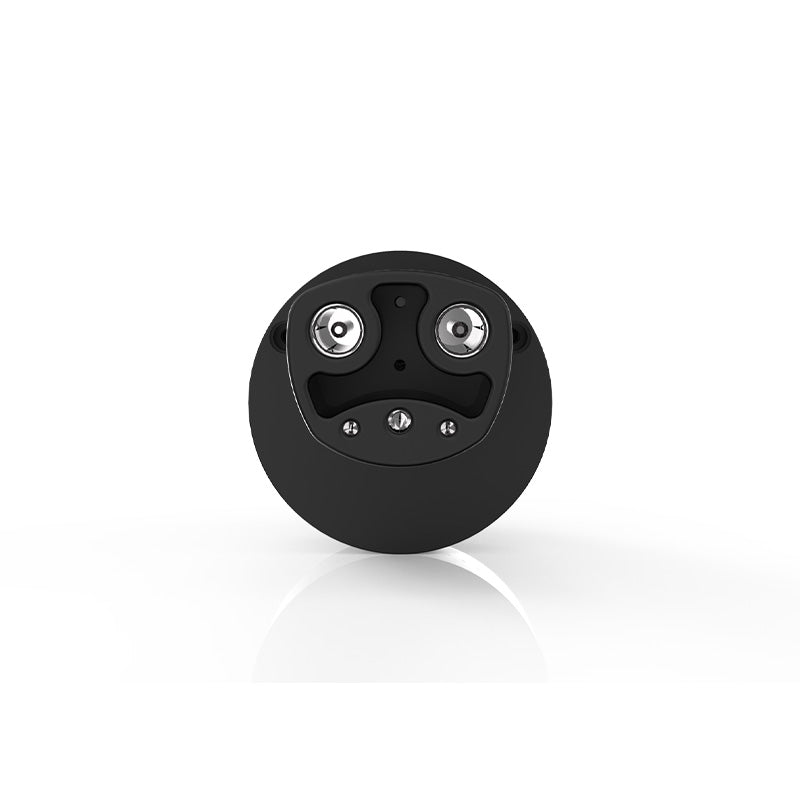

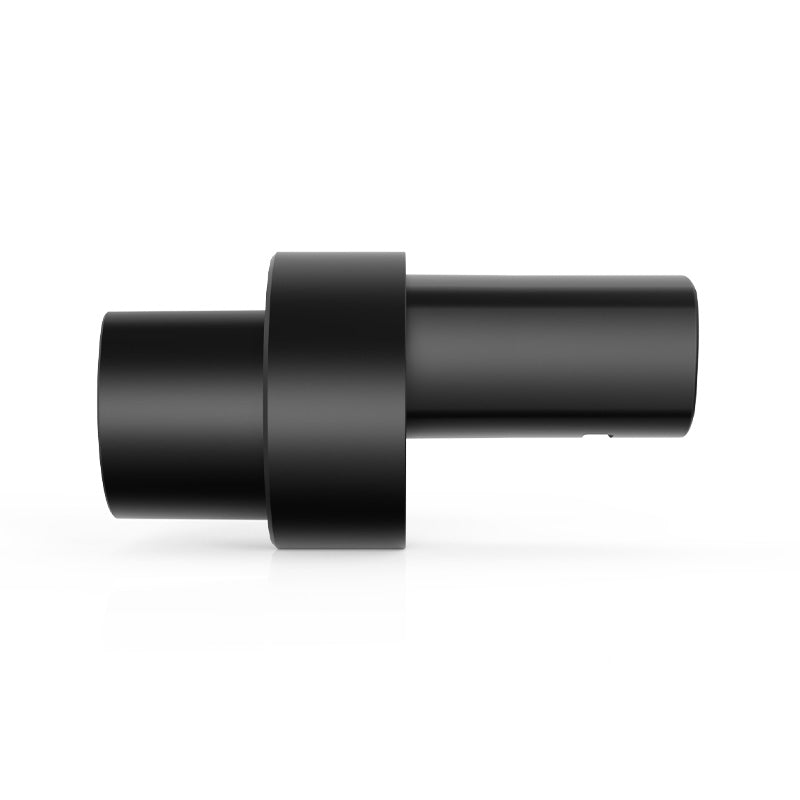

Type 2 to NACS AC Adapter
Connect a NACS-equipped vehicle to a compatible Type 2 AC charging point. Designed for single-phase AC charging, the adapter supports 110V AC / 250V AC max with a rated current of 80A.
Built for regular charging use, it features IP54 protection after coupling, a working temperature range of −30°C to +50°C, and built-in temperature protection that automatically shuts down
Silver-plated conductors, contact resistance of ≤0.5mΩ, and mechanical durability exceeding 10,000 no-load mating cycles support reliable long-term use. it is easy to keep in the vehicle.
Works with: NACS-standard vehicles charging from compatible Type 2 AC chargers.
Design standard : IEC 62196-3 & North American Charging Standard (TS-0023666).
IMPORTANT NOTICE: Always confirm your vehicle’s charging connector, AC/DC charging specifications, supported voltage, current, and maximum charging power, as these may vary by model, model year, and market. Charging compatibility and performance depend on the vehicle and charging source. For AC charging: also confirm your vehicle’s On-Board Charger (OBC) capability.
Technical Specifications
Type 2 to NACS AC Adapter
Every detail you need to confirm the right fit, from connector standards and power ratings to protection and operating range.
AC
For NACS vehicles charging from Type 2 AC stations across the UAE and Europe.
80A
250V AC
IP54
-30°C to +50°C
0.34 kg
119.9 × 62.5 × 62.5 mm
CE / IEC 62196
110V AC/ 250V AC Max
1 year
Which adapter does your EV need?
Find your vehicle's charging standard to see the adapters you need for AC and DC charging.
Type 2 to GB/T AC · CCS2 to GB/T DC
Type 2 to NACS AC · CCS2 to NACS DC
CCS2 to NACS Cybertruck DC
CCS2 to CCS1 DC
