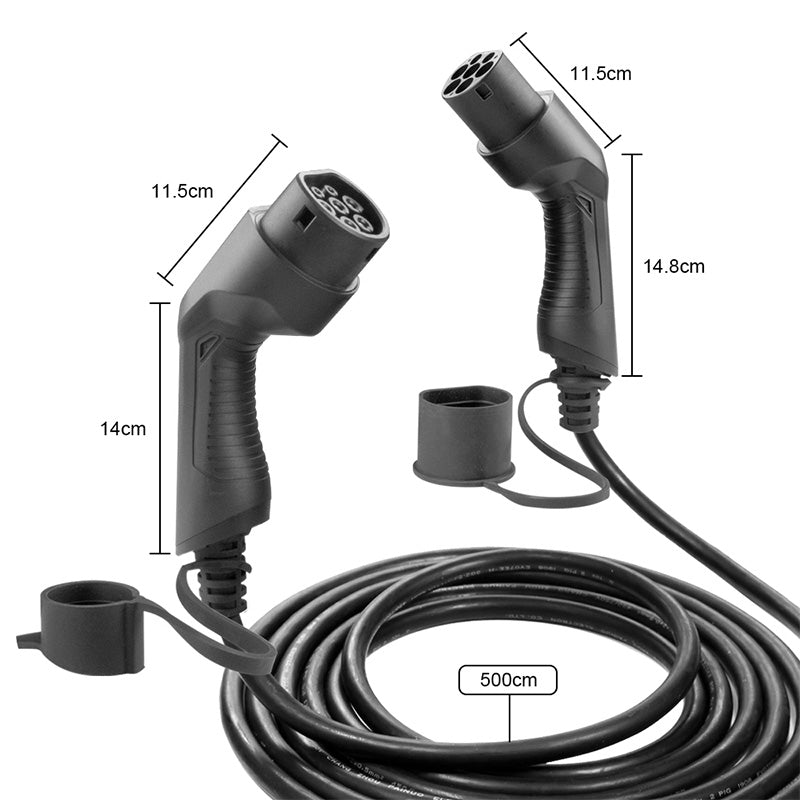

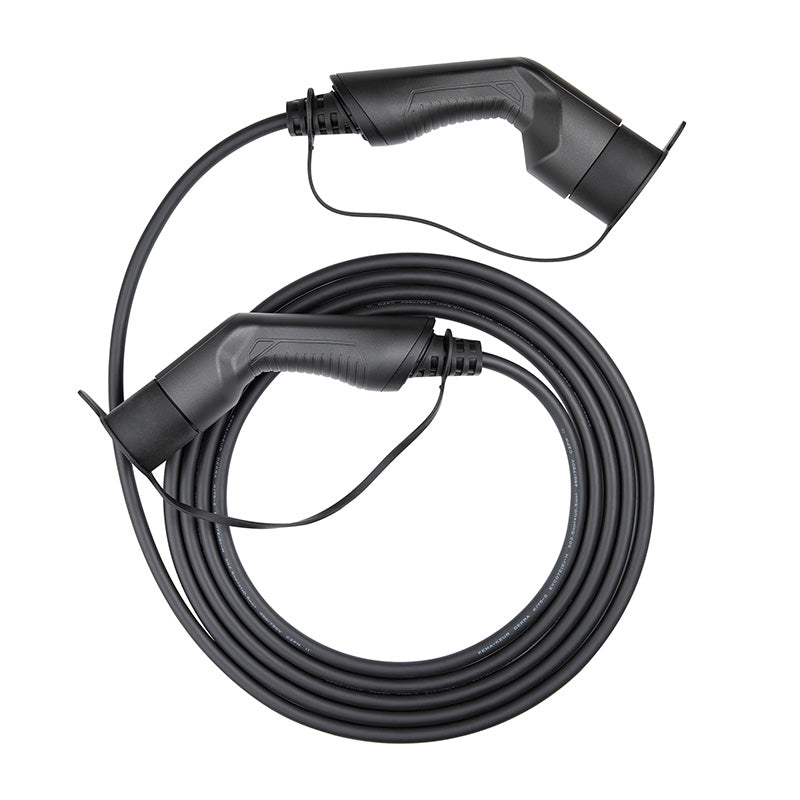

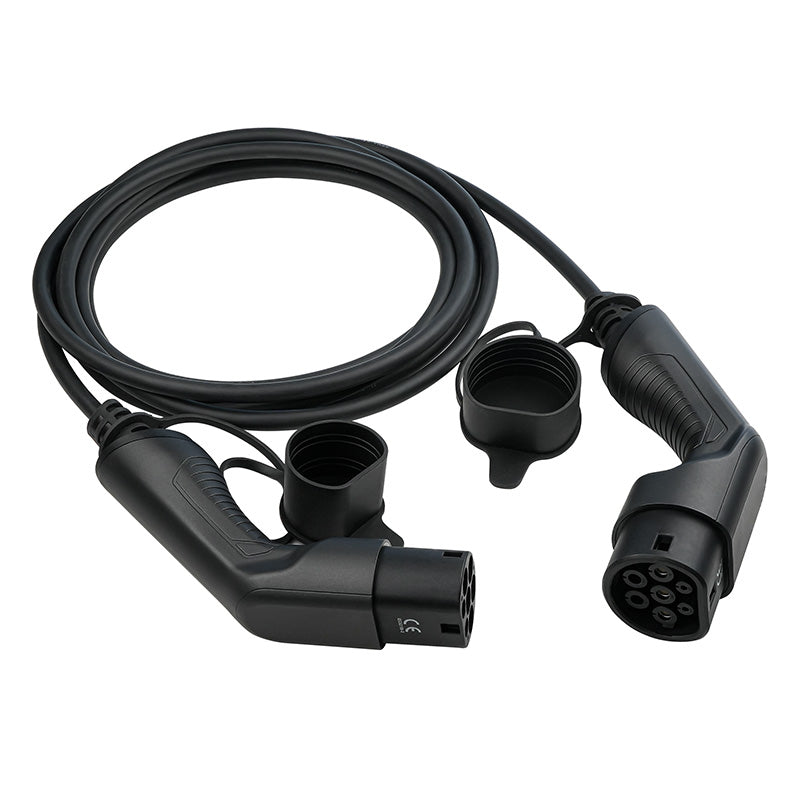

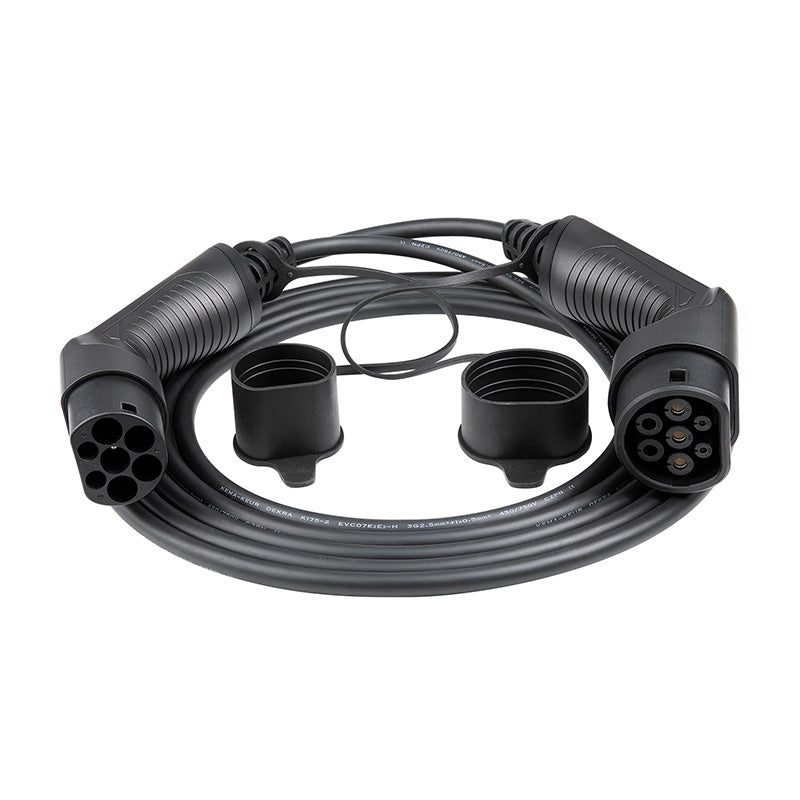

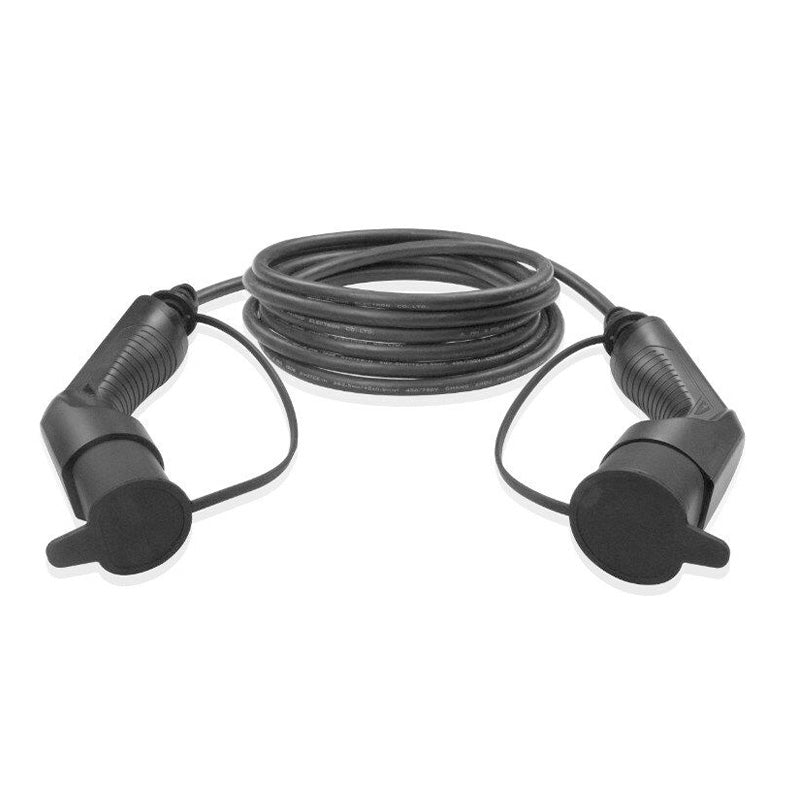

Type 2 to Type 2 Charging Cable (22kW)
The EVTRIX CHARGE Type 2 to Type 2 cable is a Mode 3 charging cable connecting a Type 2 AC charge point to a compatible Type 2 vehicle. Rated up to 22kW (32A, three-phase AC), it also supports compatible 7kW and 11kW AC charging, giving you one cable across different charging power levels.

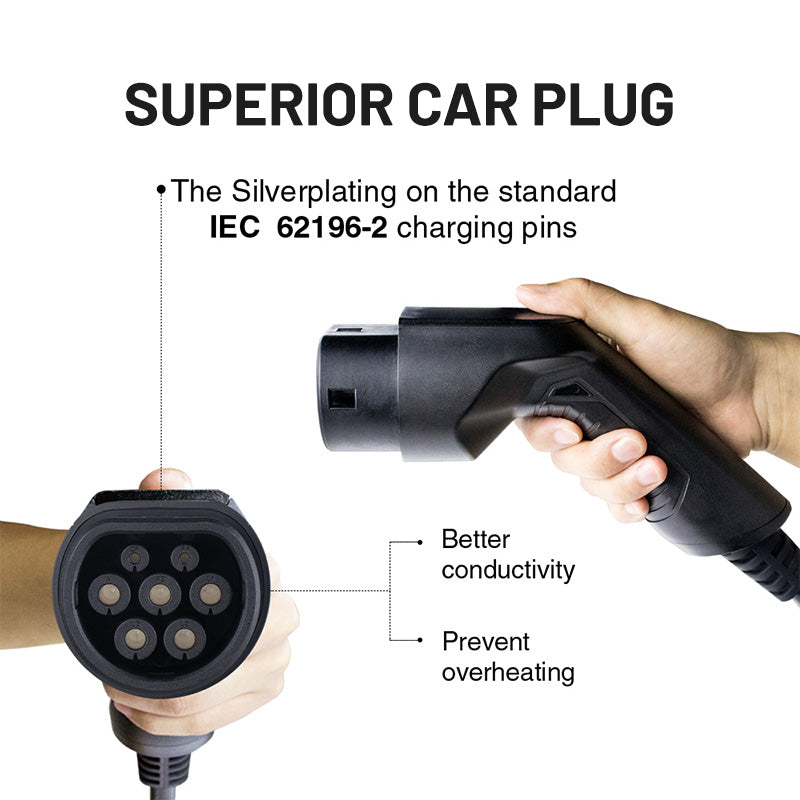

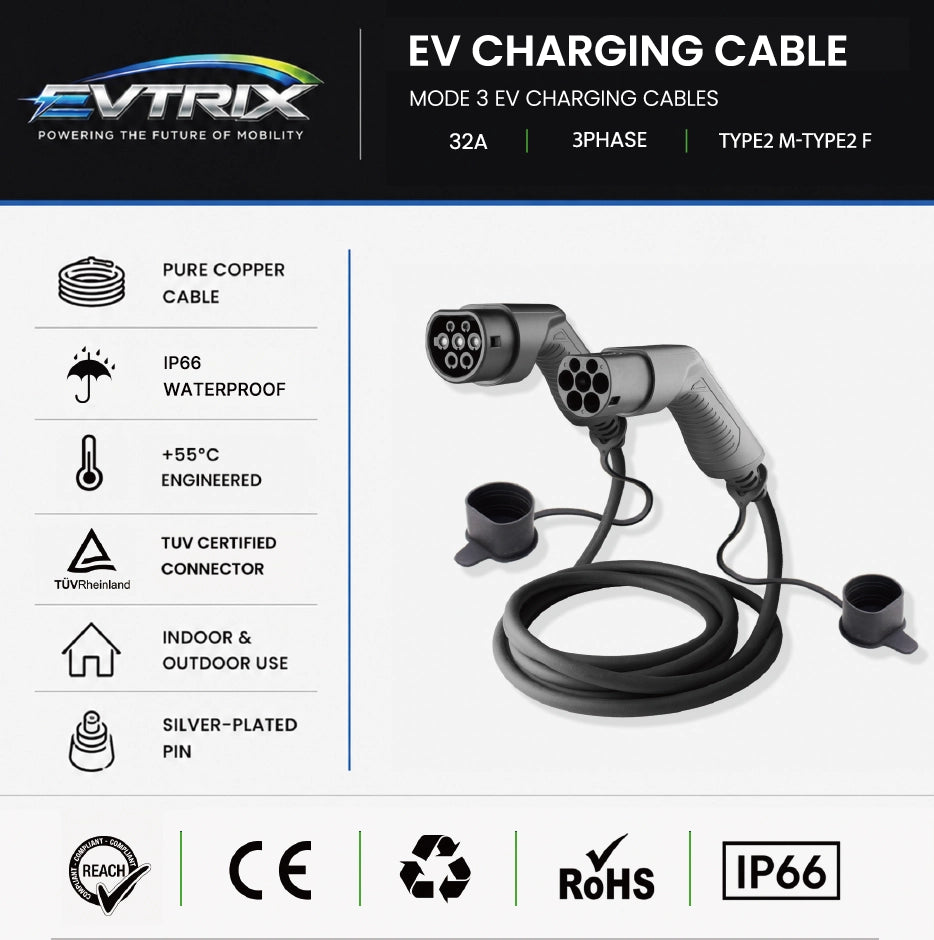

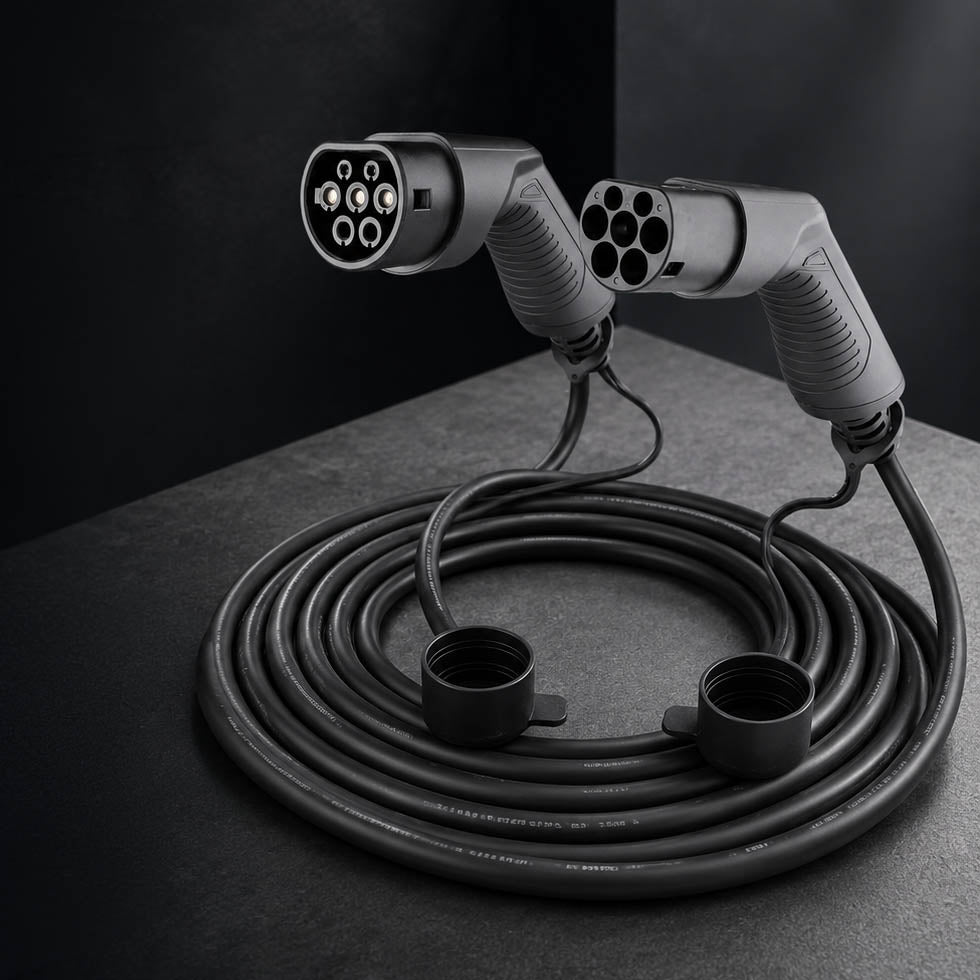

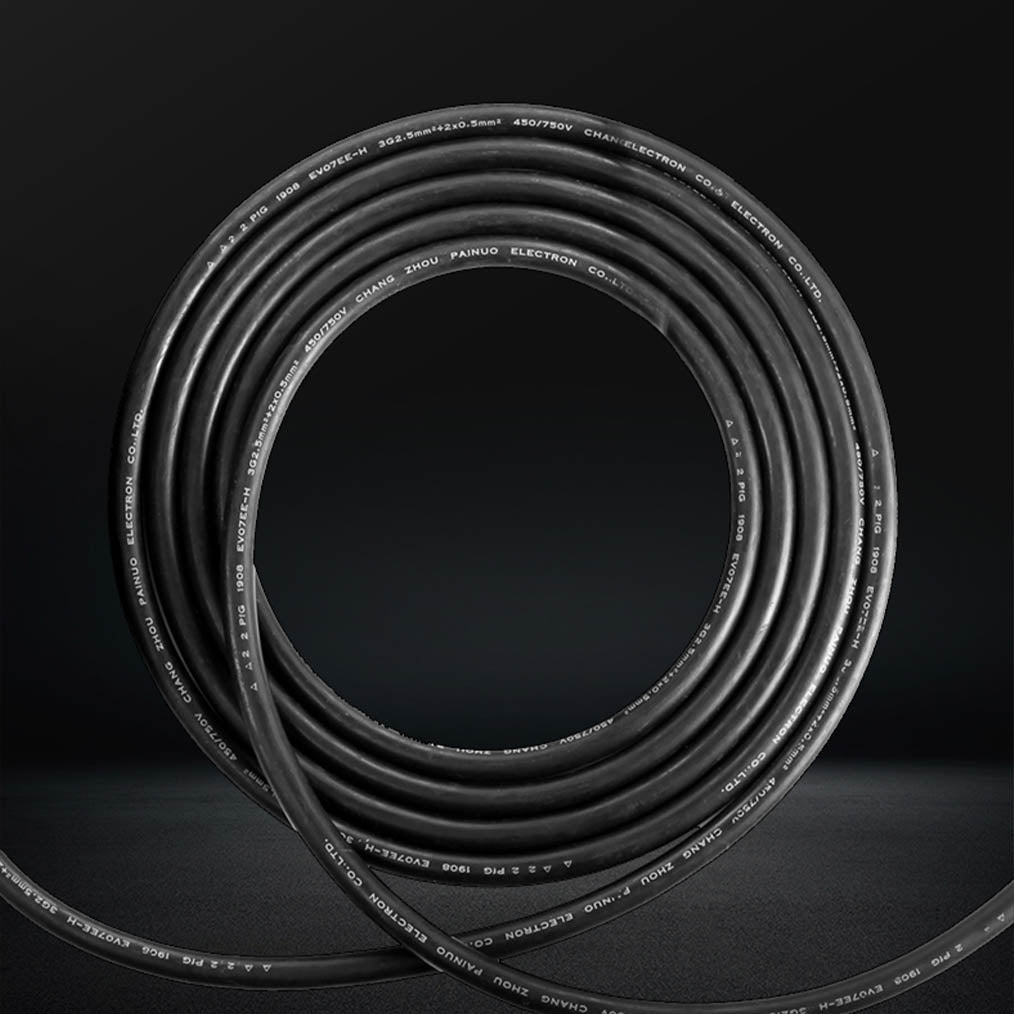

Built for daily use, it combines a flexible TPU cable, pure copper conductors, silver-plated contacts and durable PC + PA66 connector housings. Its IP66-rated connector, high-voltage-tested construction and −25°C to +55°C operating range support demanding indoor and outdoor use, with more than 10,000 mating cycles.
Premium materials, robust weather protection and tested components are engineered for dependable long-term charging.
Works with: Compatible Type 2 vehicles charging from Type 2 AC charging points.
Always check your vehicle’s onboard charger (OBC) specification. Actual charging power depends on the vehicle, charger and available electrical supply.
Technical Specifications
Type 2 to Type 2 Charging Cable (22kW)
Everything you need to check the fit and performance, from power and connectors to build materials, protection, and operating range.
AC
Up to 22kW
32A
Up to 480V AC (three-phase)
Type 2 to Type 2
IEC 62196-2
Mode 3
TPU

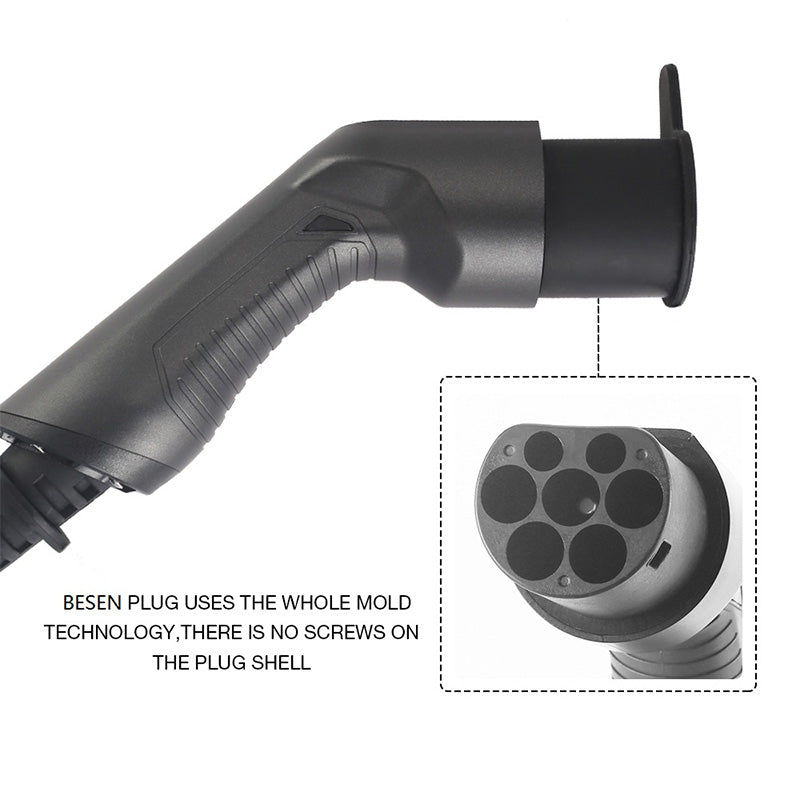

PC + PA66
-25°C to +55°C
IP66 (connector)
>10,000 mating cycles
CE, RoHS, REACH,
2 years
2 years
